Round series installation manuals

There are various types of installations for the Round series. Below are the different options easily described, step by step, for a smooth and correct installation.

Please choose installation type from below:

Choose the mounting option according to the ceiling type

Step-by-step instruction

Step 1

Thread the ceiling bracket through the rod
and tighten the nut

Step 2

Thread the upper disc, the small ring and
the power cord from the bottom of the rod and
screw the rod onto the lamp

Step 3

Connect the power cord of the lamp to the mains in the J-box

Step 4

Lock the ceiling support to the J-box

Step 5

Tighten the small ring to counter the ceiling cover

Step 5.1

Tighten the small ring to counter the ceiling cover

Step 6

Clean the lamp surface after installation

Step-by-step instruction

Step 1

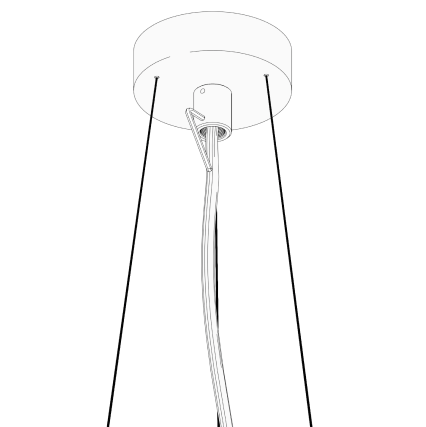

Separate the steel wire rope from the fixed head and put the fixed head into the disc

Step 2

Thread the steel wire rope and power cord through the celling cover

Step 3

Connecting line

Step 4

Lock the pendanted hanging plate to the J-Box

Step 5

Hook the lifting rope to the pendant  hanging plate

Step 6

Insert the lifting rope into the lock thread  head and cut off the  excess

Step 6.1

Insert the lifting rope into the lock thread  head and cut off the  excess

Step 7

Lock the thread head to counter the suction top cover

Step 7.1

Lock the thread head to counter the suction top cover

Step 8

Clean the lamp surface after installation

Acoustic ceiling installation with T-clip

A: Aircraft cable 16ft. B: Aircraft cable caps. C: Grippers D: Mounting brackets and bracket pins E: Cable bushing. F: J-Box CanopiesG: T clips with extra security. H: Standard T clips. I: Large hanger boltsJ: Standard hanger bolts

Step 1

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Step 1

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Rts series installation

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Rts series installation

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Step 1

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Step 1

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Step 7

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Step-by-step instruction

Step 1

Secure the surface mount plate to the Junction Box (by others)

Step 2

Hook the safety rope into the triangle buckle. Make wire connection according to the wiring diagram

Step 3

Align the mounting holes on the lamp body with the gyro column on the surface mount plate. Press it down and rotate it clockwise to secure the fixture firmly.

Step 4

Clean the lamp surface after installation
