There are three types of installations for the Magfinity series:
1) Surface Mounted
Below are the different options easily described, step by step, for a smooth and correct installation.
Manuals are designed for basic mounting installations. Choose the mounting option according to the ceiling type. For custom installation that requires special assistance, please contact our team for detailed information.
Taking the MAGfinity track and terminal box dimensions into consideration, measure and draw your desirable track line on the drywall surface.
Insert the pin into the slots on the power plate and terminal box.

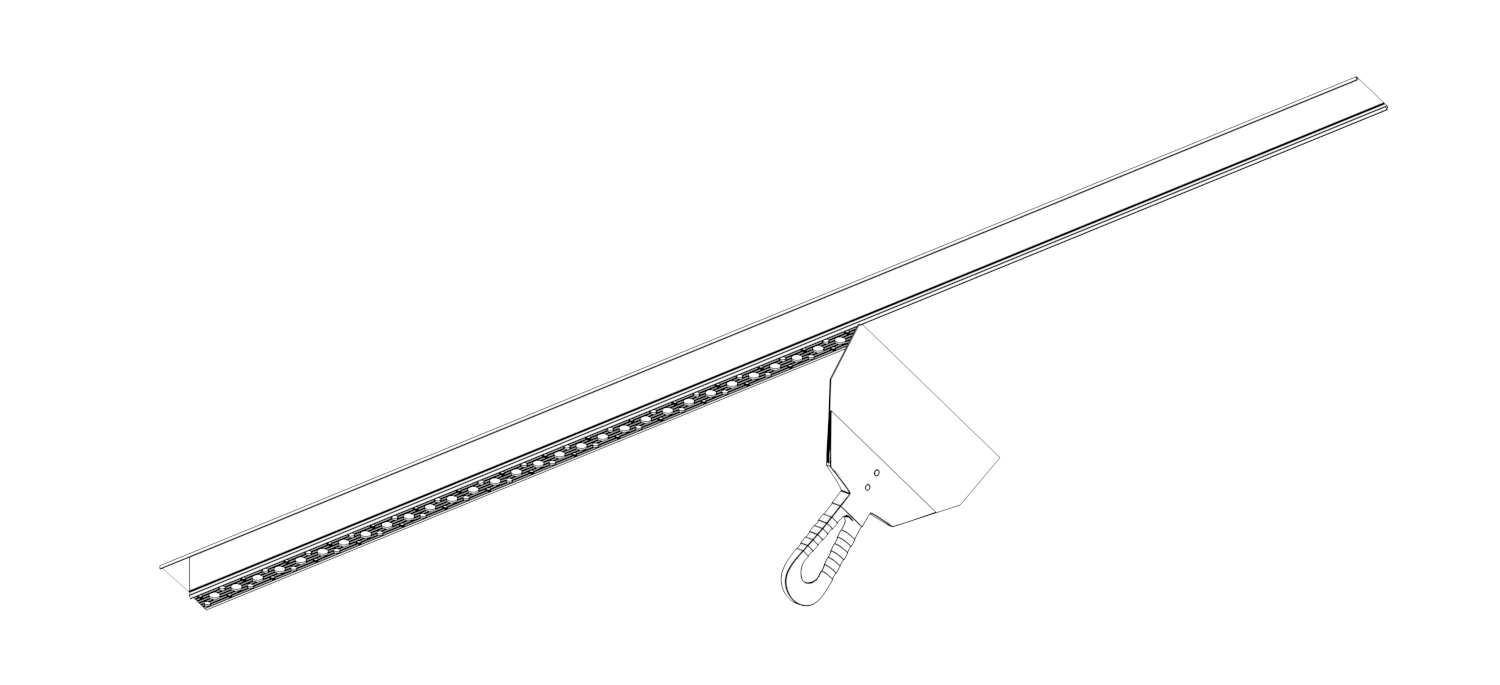

Using the coupler, attach and fasten the terminal box to the MAGtrack.
Find the ideal placement for remote LED drivers either at the nearest utility room or the track power box. From there, run the wires to approximate terminal box location.
Take a precise measurement at the MAGfinity track for straight and leveled clips positioning. Attach mounting clips to your surface with a screw.
Connect power wires to the terminal box. Take internal power plates out of the MAGfinity track and place it into the opening. Make sure your track is straight and level. Screw the fixture through right into a bracket, one by one.
Place the MAGfinity track securely against the mounting clips, make sure the clips sit in the track. Firmly rotate to fasten each clip.
If needed, connect all the MAGfinity track's consecutive elements with a pin in between the power plates located on each component.
After successful pin connection, secure two MAGfinity elements by coupler
Snap-in place the desirable luminaires. Enjoy the installation!
Find the ideal placement for remote LED drivers. Either at the nearest utility room or the track power box. From there, run the 16-18 gauge wires to your J-Box location.
Measure the desired height from the fixture to the ceiling. The power feed cable is 16 ft long, the fixture can be placed within that distance. Make sure to save 6 inches for electrical connection at the j-box. And save 6 inches for electrical connection at the terminal box. Cut and discard excessive cable length.
Unscrew the grippers from the hangar mounts. Slide the hangar mounts onto the top side of the track.
The aircraft cable’s length can be adjusted through the gripper.Cut and discard excessive cable length.
Complete step by screwing the gripper back to the hangar mounts.
Take the terminal box out and remove the cover by sliding out. Using a screwdriver, remove the pre-installed wires from the terminal box. Make sure to keep the internal wires untouched. Insert power feed cable from the canopy set to the terminal box and fasten them with a screwdriver.
- Black is negative (Black to Black)
- White is positive (White to Red)
Insert the pin into the slots on the power plate and terminal box. Using the coupler, attach and fasten the terminal box to the MAGfinity track.
Fasten the mounting bracket to the J-box with the provided screws.
Pull the feeding cable through the cable bushing on the canopy plate.
Connect the feeding cable wires from the inside of the canopy to the preinstalled electrical wires inside the J-box using WAGO connectors.
Using the screws on the side, Insert the canopy cover plate over the mounting bracket. Securely place it on the j-box.
If needed, connect all the magtrack's consecutive elements with a pin in between the power plates located on each component. Please make sure to slide the hangar mounts onto the top side of another MAGfinity track before connection.
Snap-in place desirable luminaires and enjoy the installation!
Two preinstalled octagon shape j-boxes or j-box with round cover recommended for the proper and clean installation.
A: j-box cover plate; B: mounting plates; C: hanger bolts; D: cable retainer; E: cable bushing; F: mounting brackets; G: bracket pins; H: aircraft cable caps; I: grippers; J: aircraft cable 16ft
Prior to installation, make sure nothing is missing from the list above; the electrical power is off, and necessary tools are handy.
Insert the hanger bolt into the cable retainer, and screw it through the mounting plate.
Fit the cable bushing on the canopy plate with the power feed opening.
Measure the desired height from the fixture to the ceiling. The aircraft and power feed cables are 16 ft long and the fixture can be placed within that distance.
Pull the feeding cable through the cable bushing and the mounting plate. Secure at least 6 inches of the line on the mounting plate in the cable retainer using two small screws.
Connect the feeding cable wires accordingly to the preinstalled electrical wires inside the J-box.
Fasten the mounting plate to the J-box with provided screws.
Insert the canopy cover plate through the hanger bolt and securely place it on the j-box.
Attach the aircraft cable by screwing the cable cap onto the hanger bolt.
Attach the mounting bracket at the desired location alongside the backtrack of the fixture and secure it with the bracket pin.
Screw the gripper in the center hole of the bracket, all the way in. Make sure it’s in all the way, tight and secure. Push the aircraft cable in to adjust the desirable length, ensuring that the fixture is level.
Ensure that the fixture is level, cut and discard unnecessary length of aircraft cable. Clean the fixture. The installation is complete.
Taking the MAGfinity track dimensions into consideration, measure and draw your desirable track line on the drywall surface.
Cut into drywall to create opening. Make sure the cut is precise and does not exceed 1/8" of a fixture size for a sharp looking installation.
Find the ideal placement for remote LED drivers either at the nearest utility room or the track power box. From there, run the wires to either end of your opening.
Using WAGO connectors, attach 3 pin connectors to your power supply wires. Each power supply requires 110/277 VAC connection.
Join the flexible 2 pin connectors first and place the track into the drywall opening.
Note: For single fixture run, attach the end cap to both ends.
Secure the track with the screws through the trim holes around. Make sure the track is secured.
If needed, connect all consecutive elements of the track with the 2 pin connectors located on each component. Secure into place by following step 6 with the newly consecutive tracks. For multiple fixture runs, attach the end caps to the beginning and the end of your run.
Secure the newly connected track with screws through the trip holes around. Make sure the track is secured. Continue Step 7 and 8 for any continuing tracks.
Using painter's tape, cover the track slot. Add plaster on the track trim and smoothly patch it with a compound knife. Even the patched drywall surface out. Let it dry 12 hours minimum.
Sand, the patched area, make sure to sand along the taped edge area for a smooth transition.
Snap-in place desirable luminaires and enjoy the installation.
