Choose the mounting option according to the ceiling type; for drywall or a concrete ceiling, choose J-Box installation or Acoustic for T-bar ceilings like Armstrong.

Acoustic ceiling installation with T-clip

A - 2 x Aircraft cables 16ft
B- 2 x Aircraft cable caps
C- 2 x Grippers
D- 1 x Cable bushing
E - 2 x J-box canopies
F - 2 x T-clips with extra security
G - 2 x T-clips
H - 2 x holder bolts Standard
I - 2 x holder bolts Large

Step 1 - Getting ready

Prior to installation, make sure nothing is missing from the list above; the electrical power is off, and necessary tools are handy.

Step 2(a) - Preparing the standard T clip

Piece together the T Clips, and insert a holder bolt into each of them.

Step 2(b) - Preparing secured T clip

Piece together the T Clips, and insert a holder bolt into each of them.

Step 3 - Preparing Suspension

Attach the aircraft cables to the mounting brackets, on the XTR fixture, and screw the gripper in the center hole all the way in. Make sure it's in all the way, tight and secure.

Step 4 - Taking Measurements

Measure the length between the mounting brackets. This will give you the measurements for the placements of the T-clips.

Step 5 - Attaching the T clips

Attach the clips to the ceiling’s marked spots with the correct measurements from step 4.

Step 6 - Connecting it all together

Insert the cable bushing into the canopy - run the cable through the canopy, into the ceiling, and run it to the nearest J-box.

Step 7 - Securing the Canopy

Cover T clip with canopy, so T clip bolt sticks out. Attach the aircraft cable cap to the T clip bolt.

Step 8 - Adjusting the height and level

Push the aircraft cable into the gripper on the mounting bracket to adjust the desirable length, making sure the lighting fixture is level.

Step 9 - Complete installation

When the desired height of the fixture is secured, cut the excess aircraft cable.

Starline

Starline is a linear lighting fixture that appears hidden to provide light with minimal light source visibility. It adds mystique to a modern space, giving the feeling of true minimalistic luxury - especially when used with the recessed track, as the light source will appear almost invisible. We provide the Starline in two sizes, 6 inch and a 12 inch. They can be installed next to each other to create a longer continuous line.

Step 1

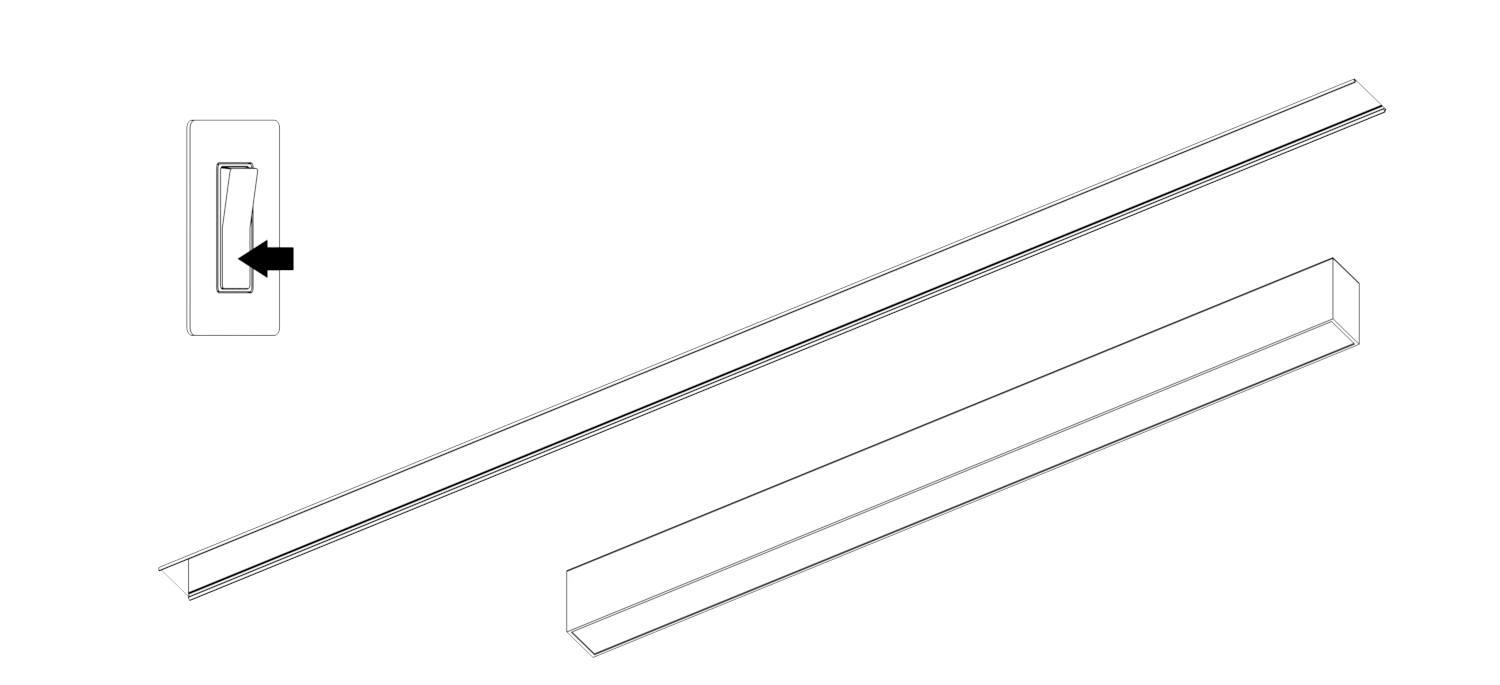

Turn off power to Magfinity track.

Step 2

Position Starline fixture to align with MAGfinity track and insert for connection. Will automatically attach to MAGfinity track through the power of magnets!

Step 3

Turn on power to MAGfinity track. Enjoy the installation!

Fixture Lineup

Luminaries

Moonline

Moonline is excellent for general lighting, it provides a larger scope of light than the other fixtures and is designed with ambiance and practicality in mind. Will energize spaces that house a lot of productivity, like an office, a kitchen or any workplace. The moonline can be installed next to each other to create an apparently seamless line of linear LED light. We provide two sizes of the Moonline, a 12 inch and a 25 inch option.

Step 1

Turn off power to Magfinity track.

Step 2

Position Moonline fixture to align with MAGfinity track and insert for connection. Will automatically attach to MAGfinity track through the power of magnets!

Step 3

Turn on power to MAGfinity track. Enjoy the installation!

Fixture Lineup

Luminaries

Acoustic ceiling installation with T-clip

A: Aircraft cable 16ft. B: Aircraft cable caps. C: Grippers D: Mounting brackets and bracket pins E: Cable bushing. F: J-Box CanopiesG: T clips with extra security. H: Standard T clips. I: Large hanger boltsJ: Standard hanger bolts

Step 1

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Step 1

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Rts series installation

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Rts series installation

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Step 1

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Step 1

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Step 7

Our lighting fixtures designed specifically for our MAGfinity track lighting system are a variety of designer luminaries for different functions and looks. Very easy to install.

Starline Fold

The starline fold is a modular linear lighting fixture that is bendable after it is attached to the magnetic track to focus the light at the desired point. An excellent option for accent lighting, and to pull focus towards large artwork, signage or any feature you wish to illuminate

Step 1

Turn off power to Magfinity track.

Step 2

Position Starline FOLD fixture to align with MAGfinity track and insert for connection. Will automatically attach to MAGfinity track through the power of magnets!

Step 3

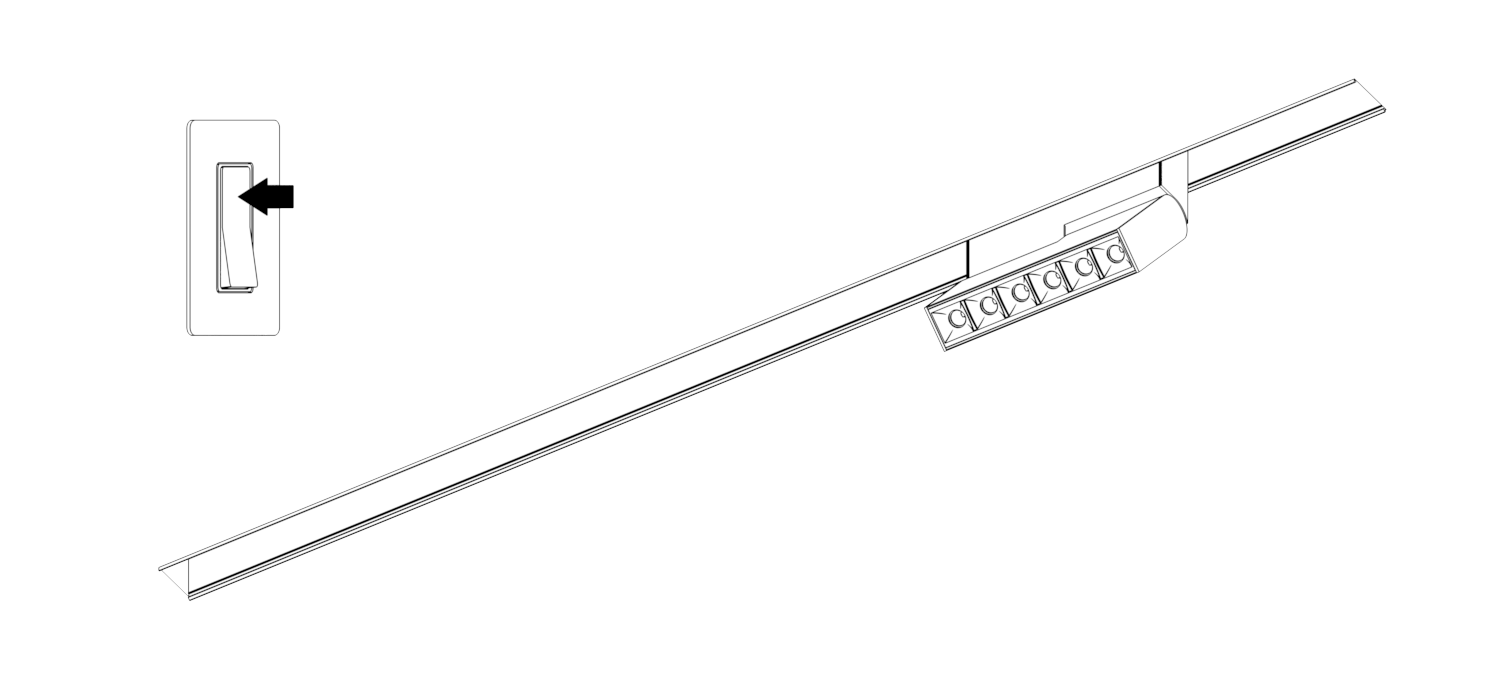

Customize the angle of the lighting FOLD for your convenience.

Step 4

Turn on power to MAGfinity track. Enjoy the installation!

Fixture Lineup

Luminaries

Washer

Aurora is a wall washer, it is a visible linear light fixture with a broader scope of illumination and is used to light up areas of the wall. You can add multiple wall washers on the track to cover more wall, and highlight art, a company logo or features like wallpaper.

Step 1

Turn off power to Magfinity track.

Step 2

Position Washer fixture to align with MAGfinity track and insert for connection. Will automatically attach to MAGfinity track through the power of magnets!

Step 3

Turn on power to MAGfinity track. Enjoy the installation!

Fixture Lineup

Luminaries

Orion

Our Orion is a classic spotlight, which is excellent accent lighting. It can be utilized to enhance focal points in the room. The direction of the light can be rotated to focus the light to any desired area. Excellent for ambient lighting, task lighting and to highlight exceptional features such as artwork. We offer two sizes of the Orion, and three different beam angles.

Step 1

Turn off power to Magfinity track.

Step 2

Position Orion fixture to align with MAGfinity track and insert for connection. Will automatically attach to MAGfinity track through the power of magnets!

Step 3

Rotate the angle of lighting for your convenience.

Step 4

Turn on power to MAGfinity track. Enjoy the installation!

Fixture Lineup

Luminaries

Capella

The Capella is a sleek and modern take on pendant lighting. Perfect for a reading nook or over a dinner table, the length can be adjusted allowing you to design a modern chandelier type configuration, with multiple pendants hanging at different lengths. We offer the Capella pendant light in two sizes and in three different beam angles.

Step 1

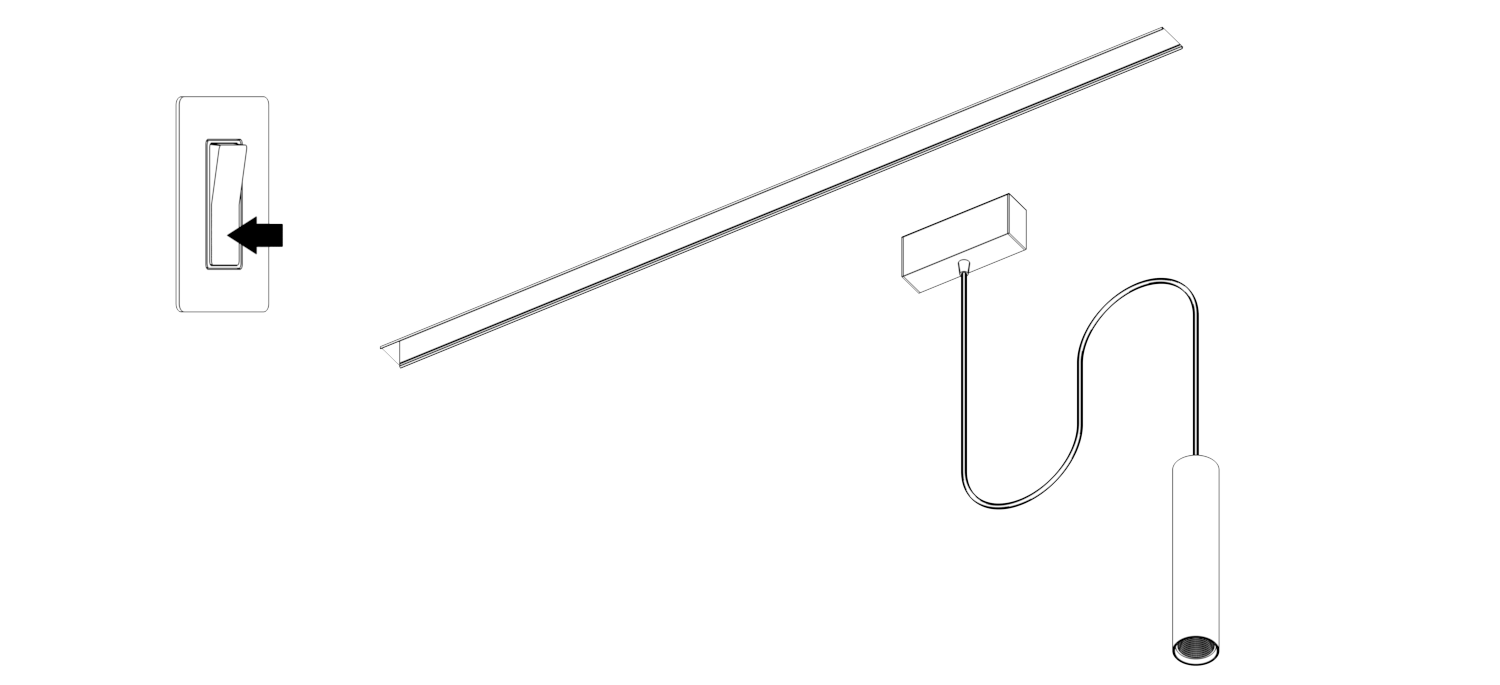

Turn off power to Magfinity track.

Step 2

Position Capella fixture to align with MAGfinity track and insert for connection. Will automatically attach to MAGfinity track through the power of magnets!

Step 3

Turn on power to MAGfinity track. Enjoy the installation!

Fixture Lineup

Luminaries
